Xinxing Twin Screw Machinery Co.,Ltd
|
UPVC Profile Production Line
| Price: | 10000.0 USD |
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Shanghai, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Screw Design: Double-screw
Automatic Grade: automatic
Place of Origin: Shanghai, China (Mainland)
Brand Name: Xinxing
Voltage: 380V

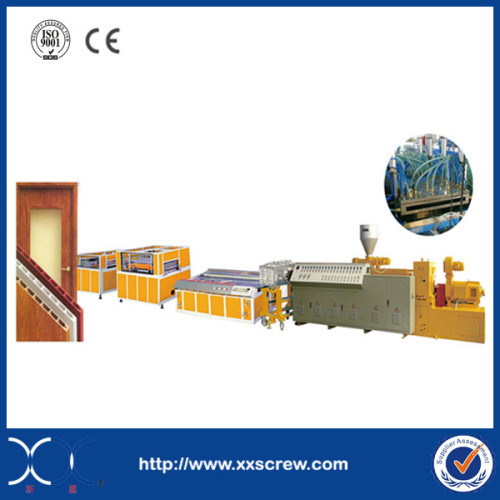

UPVC Profile Production Line/ UPVC Window Profile Extrusion Line
Product Description
1. UPVC Window Profile Extrusion Line using the twin-screw extuder machine.
2. UPVC Window Profile Extrusion Line mainly usd for WPC door and window profile.
3. UPVC Window Profile Extrusion Line mainly consisted of host extruder,mold,vacuum tank,haul-off machine,cutting machine,stacker and so on.
4.The host extrusion capacity can be an hour between 150kg to 450kg optional.
5.Adopt the PLC control system,and using the famous British Eurothrm DC speed gonver can make the produce foaming good.
6.Depending on the different mold,the sharping tank can choose 4 meters,6 meters,8 meters,11meters.
7.All movements are controlled by imported PLC,the design is reasonable,the operation is stable,also it can conduct automatic cutting with fixed length.
Suitable for raw material:upvc
Suitable for door size 900x40mm
Center height of line: 1200mm
Water circulation volume for cooling: 25 m3/h (≤20°C,≥0.3Mpa)
Pool volume: 35m3
Compressed air capacity: 3.0 m3/min (>0.5MPa)
Driving power supply: 3 phase 380V (±10%) 50Hz
Assembly total power: 336Kw
Production line overall dimension: 45000×2100×2800mm
Constitute of UPVC Window Profile Extrusion Line :
| Ref.# | Equipment list | Qty |
| 1. | High speed mixing unit model DYHL800/2000 | 1pc |
| 2. | Conical twin screw granulation unit model SJSZ-80/156 | 1pc |
| 3. | Hollow pvc wood door sheet extrusion line | 1pc |
| 3.1 | Conical twin screw extruder model SJSZ92/188 | 1pc |
| 3.2 | Mold model LXG900 | 1pc |
| 3.3 | Vacuum forming table model DX900 | 1pc |
| 3.4 | Traction machine model QG900 | 1pc |
| 3.5 | Cutting machine model QG900 | 1pc |
| 3.6 | Turnover stacker model QZ900 | 1pc |
| 4. | Hollow pvc wood door frame extrusion line | 1pc |
| 4.1 | Conical twin screw extruder model SJSZ65/132 | 1pc |
| 4.2 | Mold for 260 door frame | 1pc |
| 4.3 | Vacuum forming table model DY300 | 1pc |
| 4.4 | Traction & cutting machine model QYQG300 | 1pc |
| 4.5 | Turnover stacker model FG300 | 1pc |
